The range-topping TAM XR unleashes full party mode.

Its Series 4 Aluminum frame and 120mm of XC-tuned IsoTrac suspension absolutely rip rough terrain. Fox's uncompromising Performance Elite 34 SL fork and custom-tuned Float SL shock pair with Shimano's wireless Deore Di2 drivetrain for the biggest adventures and widest smiles.

The confidence-boosting 65-degree head angle keeps you in control and hungry for more – crush local XC laps, tackle epic rides, or just shred for the joy of it.

Product Specification

Frame	All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs
Front Suspension	Fox 34SL Performance Elite, 130mm Travel, Grip X Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset
Rear Suspension	Fox Floar SL Performance Elite, 3-Pos Compresion Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune
Rims	WTB KOM Light i30, 28H
Hub, Rear	WTB X7, 148x12, Straight Pull, 28H, 6-Bolt Disc , MicroSpline FH
Hub, Front	WTB X7, 110x15, Straight Pull, 28H, 6-Bolt Disc
Tires	Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready
Derailleur, Rear	Shimano Deore Di2, 12-Speed, SGS
Shift Lever	Shimano Deore Di2, 12-Speed
Crankset	Race Face Turbine, 32T Alloy Ring, 30mm Spindle, 170mm, 55.5mm CL
Chain	KMC X-12 Silver and Black
Brake, Front	SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake, Rear	SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake Levers	SRAM Motiv Silver
Handlebar	Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back
Stem	Marin 3D Forged Alloy, 55mm
Grip	Marin Grizzly Lock-On
Headset	FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost	PNW Loam Dropper Post Gen 2+, Range Lever MMX Clamp, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM
Saddle	Marin Speed Concept

Marin Bikes

Price

Collections

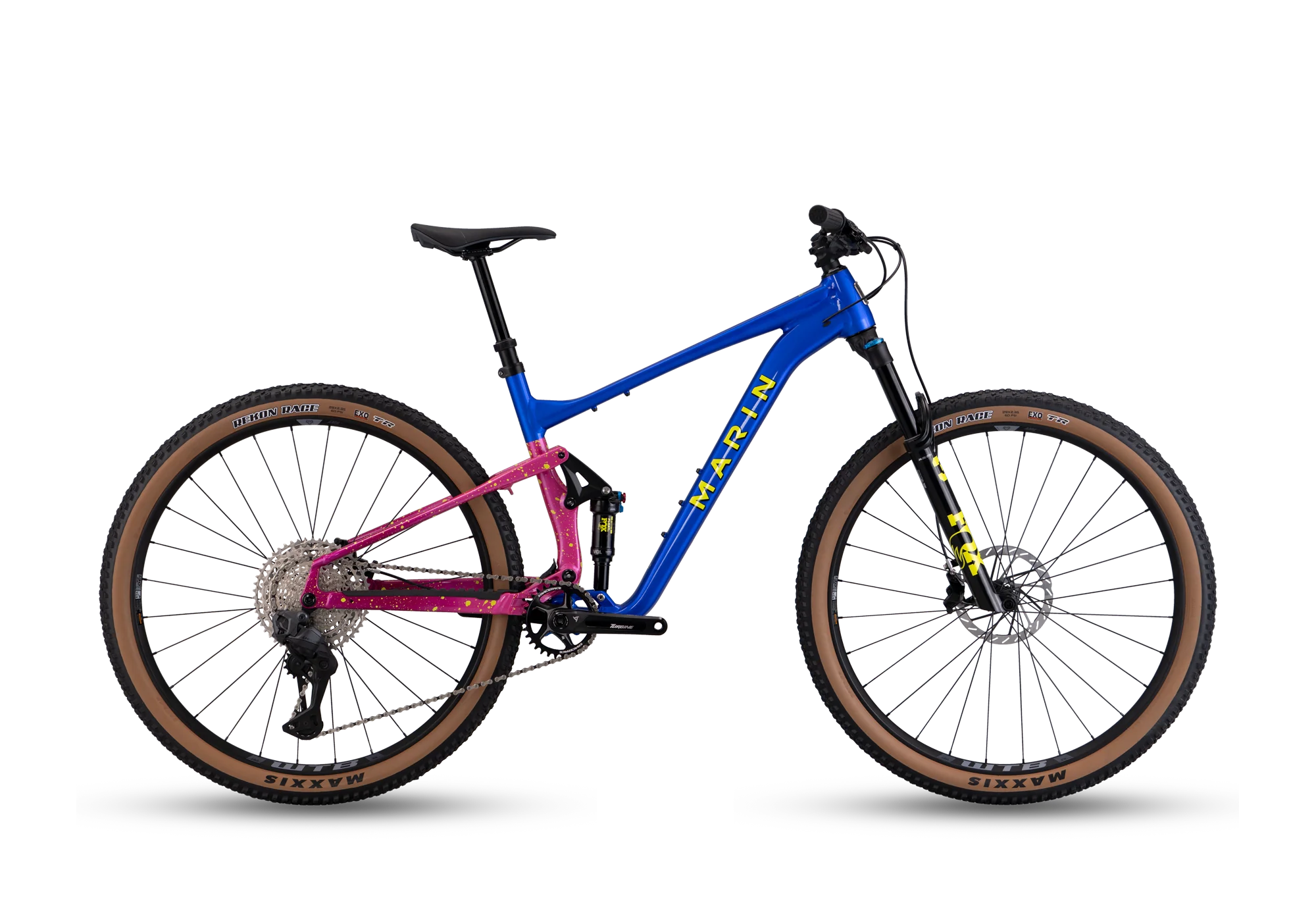

Marin TAM XR - 2026
